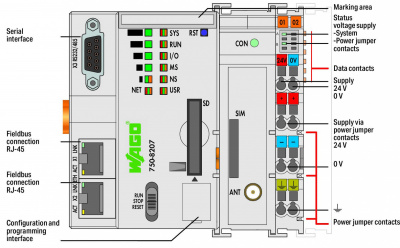

750-8207 Контроллер PFC200; 2 x ETHERNET, RS-232/-485, мобильный радиомодуль
Характеристики
Производитель
|
Wago |
Высота (H), мм
|
64,7 mm / 2.547 inch |
Цвет
|
светло-серые |
Связь
|
Modbus TCPEthernetModbus RTURS-232 serial interfaceRS-485 interfaceEtherNet/IP-Adapter (Slave), Bibliothek fur e!RUNTIMEMQTT |
Протоколы
|
DHCPDNSNTPFTPFTPSSNMPHTTPHTTPSSSH |
Визуализация
|
Web-Visu |
Процессор
|
Cortex A8, 600 МГц |
Температурный диапазон
|
0 … 55 °C |
Длина (L), мм
|
100 mm / 3.937 inch |
Ширина (W), мм
|
102,5 mm / 4.035 inch |
Размеры проводников
|
0,08 … 2,5 mm2 / 28 … 14 AWG |
Вес, г
|
290g |
The PFC200 Controller is a compact PLC for the modular WAGO-I/O-SYSTEM. Besides network and fieldbus interfaces, the controller supports all digital, analog and specialty I/O modules found within the 750/753 Series.
Two ETHERNET interfaces and an integrated switch enable line topology wiring. The controller's mobile radio module sends and receives SMS and provides wireless Internet connectivity.
An integrated Webserver provides user configuration options, while displaying PFC200 status information.
Besides standard machinery and equipment control, as well as building automation, typical applications for the PFC200 include decentralized data logging for the process industry.
Programming per IEC 61131-3
- Programmable via WAGO-I/O-PRO V2.3 or e!COCKPIT
- Direct connection of WAGO I/O modules
- 2 x ETHERNET (configurable), RS-232/-485
- Linux operating system with RT?Preempt patch
- Configuration via CODESYS, e!COCKPIT or Web-Based
